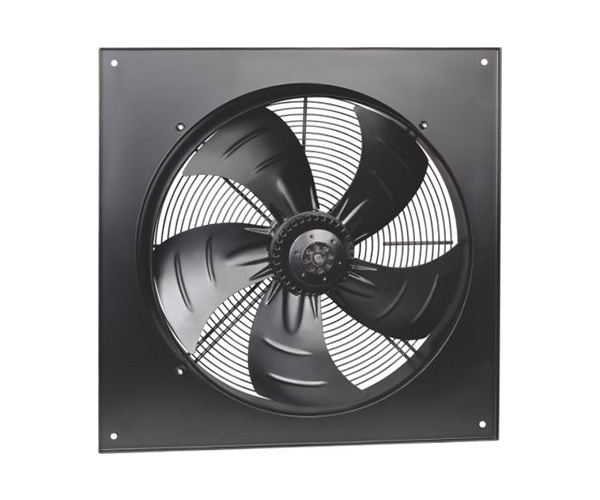

YWFB 500 Series Axial Fan Motors
Optional parts：Fan guard，square inlet ring，box Type of protection：IP44
Approval：CCC、CE
| Model | Voltage V | Drequency Hz | Current A | Input W | Speed R/min | Air volume m3/h | Noise dB(A) | Capacitance |Ј | Insulation class | Approx Weight kg | Curve NO |
| YWFB 4D-500 | 380 | 50 | 0.95 | 420 | 1350 | 6550 | 70 | - | F | 9 | ① |
| YWFB 4E-500 | 220 | 50 | 1.85 | 420 | 1300 | 6480 | 72 | 10 | F | 9 | ② |
| 60 | 2.5 | 500 | 1450 | 6480 | 72 | 10 | F | 9 | ③ | ||
| YWFB 6D-500 | 380 | 50 | 0.55 | 230 | 900 | 4950 | 66 | - | F | 9 | ④ |
| YWFB 6E-500 | 220 | 50 | 1.15 | 230 | 900 | 4900 | 66 | 10 | F | 9 | ⑤ |
