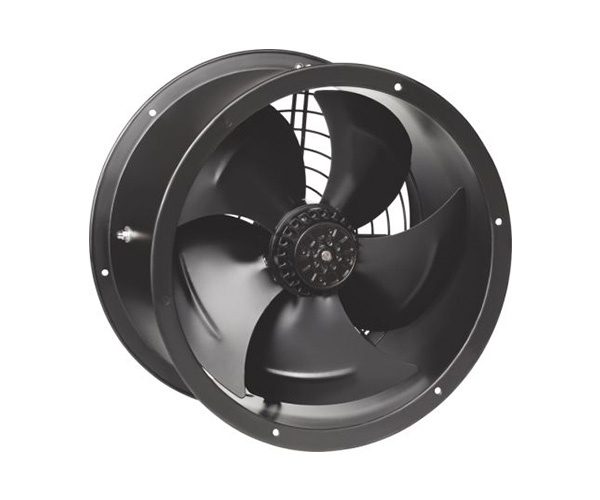

YWFT 350 Series Axial Fan Motors
Mddle | Voltage V | Frequency Hz | Current A | Input W | Speed R/min | Air volume m3/h | Noise dB(A) | Capacitance |Ј | Insulation class | Approx.Weight kg | Curve No |
YWFT 4D-350 | 380 | 50 | 0.3 | 135 | 1360 | 2300 | 62 | - | F | 5 | ① |
YWFT 4E-350 | 220 | 50 | 0.3 | 135 | 1380 | 2280 | 62 | 4 | F | 5 | ② |
60 | 0.83 | 180 | 1550 | 2600 | 56 | 4 | F | 5 | ③ | ||
YWFT 6D-350 | 380 | 50 | 0.22 | 70 | 920 | 1650 | 56 | - | F | 5 | ④ |
YWFT 6E-350 | 220 | 50 | 0.40 | 80 | 950 | 1700 | 56 | 3 | F | 5 | ⑤ |
