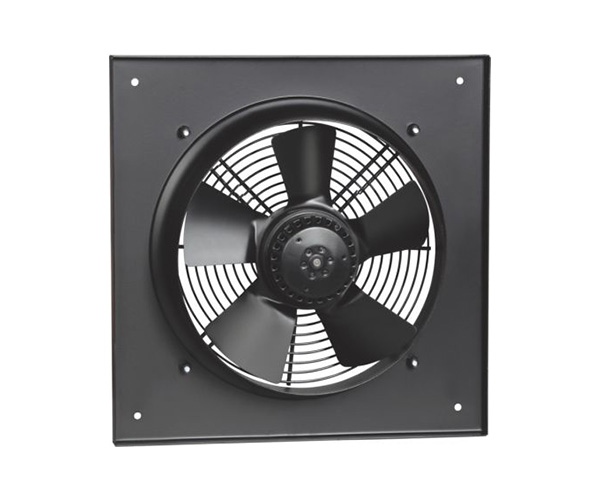

YWFB 200 Series Axial Fan Motors

Optional parts：Fan guard，square inlet ring，Јbox Type of protection：IP44

Approval：CCC、CE

Mddle	Voltage V	Frequency Hz	Current A	Input W	Speed R/min	Air volume m3/h	Noise dB(A)	Capacitance \|Ј	Insulation class	Approx.Weight kg	Curve No.
YWFB 2D-200	380	50	0.10	46	2450	750	50	-	F	2	①
YWFB 2E-200	220	50	0.23	50	2450	750	50	2	F	2	②
YWFB 4D-200	380	50	0.14	40	1400	430	43	-	F	2	②
YWFB 4E-200	220	50	0.12	27	1400	430	43	1	F	2	②

_Next

YWFB 250 Series Axial Fan Motors
