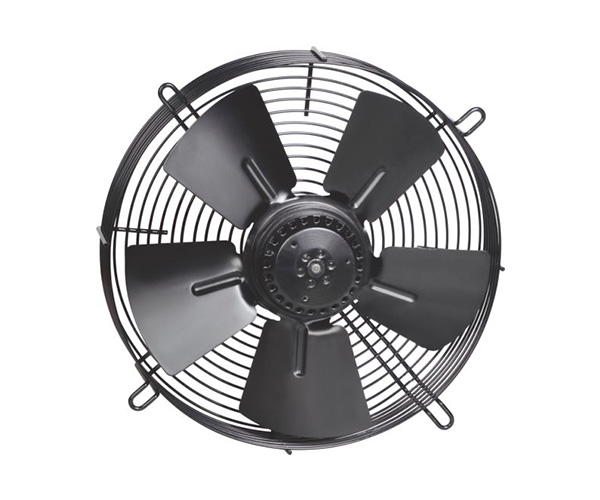

YWF300 Series Axial Fan Motors

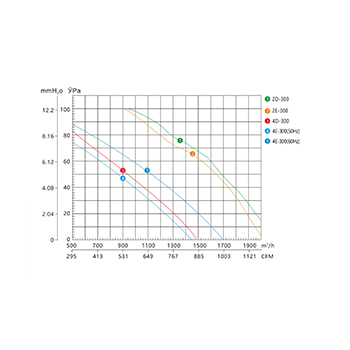

| Mddle | Voltage V | Frequency Hz | Current A | Input W | Speed R/min | Air volume m3/h | Noise dB(A) | Capacitance |Ј | Insulation class | Approx.Weight kg | Curve No |
| YWF 2D-300 | 380 | 50 | 0.25 | 115 | 2500 | 210 | 60 | - | F | 3.2 | ① |
| YWF 2E-300 | 220 | 50 | 0.55 | 125 | 2400 | 2050 | 60 | 4 | F | 3.2 | ② |
| YWF 4D-300 | 380 | 50 | 0.25 | 90 | 1380 | 1500 | 58 | - | F | 3.2 | ③ |
| YWF 4E-300 | 220 | 50 | 0.42 | 90 | 1350 | 1450 | 58 | 3 | F | 3.2 | ④ |
| 60 | 0.51 | 115 | 1600 | 1700 | 58 | 3 | F | 3.2 | ⑤ |
