φ150FORWARD CENTRIFUGAL FANS
Material:Impeller:Sheet steel, galvanised Rotor:Cast in aluminium Coated in black Type of protection:IP44
Insulation class:F
Approvals:CE.CCC

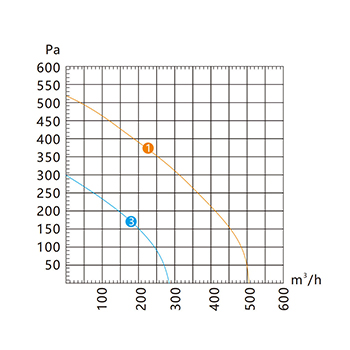

| MDDLE | VOLTAGE V | FREOUENCY Hz | CURRENT A | INPUT W | SPEED R/min | CAPACITOR μF | NET Kg | NOISE dB(A) | AIR VOLUME m3/h | CURVE NO. |
| YWF-F2E-150-070 | 220 | 50 | 0.75 | 165 | 2600 | 6 | 3.5 | 66 | 495 | ① |
| 60 | 1.08 | 230 | 3040 | 68 | 578 | ② | ||||
| YWF-F4E-150-070 | 220 | 50 | 0.35 | 66 | 1450 | 3 | 3.5 | 60 | 275 | ③ |
| 60 | 0.32 | 90 | 1700 | 62 | 323 | ④ | ||||
| YWF-F2D-150-070 | 380 | 50 | 0.3 | 90 | 2550 | / | 3.5 | 66 | 494 | ⑤ |
| 60 | 0.29 | 125 | 2740 | 68 | 578 | ⑥ | ||||
| YWF-F4D-150-070 | 380 | 50 | 0.27 | 45 | 1470 | / | 3.5 | 60 | 275 | ⑦ |
| 60 | 0.2 | 90 | 1735 | 62 | 323 | ① |
