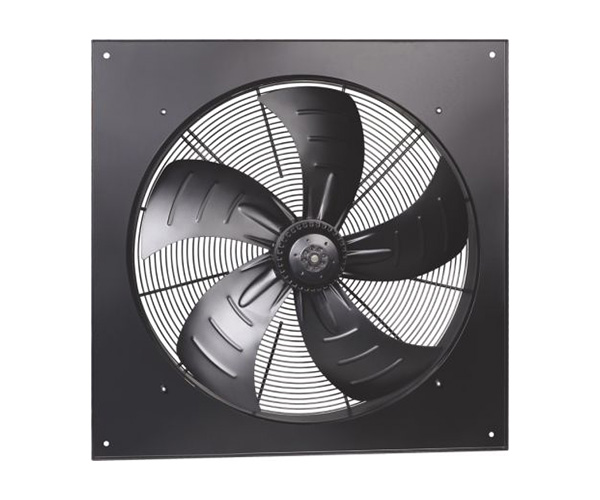

YWFB 630 Series Axial Fan Motors
Optional parts：Fan guard，square inlet ring，box Type of protection：IP44
Approval：CCC、CE
| MDDLE | Voltage V | Frequency Hz | Current A | Input W | Speed R/min | Air volume m3/h | Noise dB(A) | Capacitance |Ј | Insulation class | Approx.Weight KG | Curve No. |
| YWFB 4D-630 | 380 | 50 | 1.6 | 800 | 1350 | 12500 | 80 | - | F | 15 | ① |
| YWFB 4E-630 | 220 | 50 | 3.7 | 800 | 1350 | 11000 | 80 | 16 | F | 15 | ② |
| YWFB 6D-630 | 380 | 50 | 1.60 | 550 | 900 | 9000 | 75 | - | F | 15 | ③ |
| YWFB 6E-630 | 220 | 50 | 2.50 | 520 | 900 | 9000 | 75 | 10 | F | 15 | ④ |
