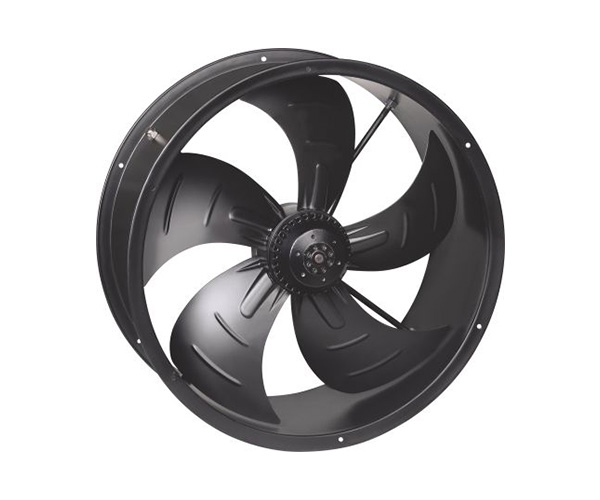

YWFT 550 Series Axial Fan Motors
| MDDLE | Voltage V | Frequency Hz | Current A | Input W | Speed R/min | Air volume m3/h | Noise dB(A) | Capacitance |Ј | Insulation class | Approx.Weight kg | Curve No. |
| YWFT 4D-550 | 380 | 50 | 1.20 | 600 | 1300 | 8600 | 75 | - | F | 11 | ① |
| YWFT 4E-550 | 220 | 50 | 2.50 | 550 | 1320 | 8200 | 75 | 12 | F | 11 | ② |
| YWFT 6D-550 | 380 | 50 | 0.90 | 320 | 900 | 6500 | 70 | - | F | 11 | ③ |
| YWFT 6E-550 | 220 | 50 | 1.70 | 330 | 900 | 6300 | 70 | 10 | F | 11 | ④ |
