φ310 BACKWARD CENTRIFUGSL FANS
Material:Impeller:Sheet steel, galvanised Rotor:Cast in aluminium Coated in black Type of protection:IP44
Insulation class:F
Approvals:CE.CCC

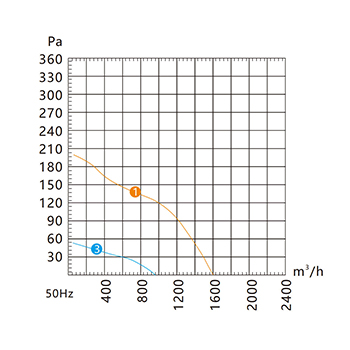

| MDDLE | VOLTAGE V | FREOUENCY Hz | CURRENT A | INPUT W | SPEED R/min | CAPACITOR μF | NET Kg | NOISE dB(A) | AIR VOLUME m3/h | CURVE NO. |
| YWF-B4E-310-136 | 220 | 50 | 0.65 | 125 | 1400 | 4 | 3.8 | 65 | 1600 | ① |
| 60 | 0.7 | 150 | 1600 | 67 | 1830 | ② | ||||
| YWF-B6E-310-136 | 220 | 50 | 0.38 | 75 | 900 | 3 | 3.8 | 60 | 900 | ③ |
| 60 | 0.35 | 75 | 1110 | 62 | 1080 | ④ | ||||
| YWF-B4D-310-136 | 380 | 50 | 0.3 | 136 | 1435 | / | 3.8 | 65 | 1600 | ① |
| 60 | 0.29 | 135 | 1580 | 66 | 1830 | ② | ||||
| YWF-B6D-310-136 | 380 | 50 | 0.2 | 70 | 900 | / | 3.8 | 60 | 900 | ③ |
| 60 | 0.27 | 78 | 1150 | 62 | 1080 | ④ |
